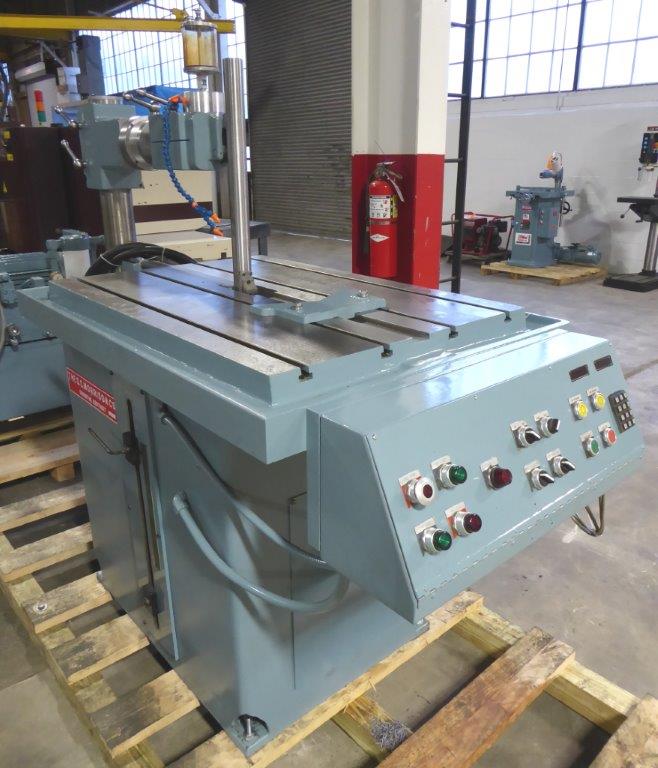

MORRISON KEYSEATER – 30436

1-1/4″W x 9″L MORRISON, 1/16″ to 1-1/4″ Cap., 24″ x 27″ Tbl., 2 HP, 1995

MODEL: 1-1/4″
SERIAL NUMBER: K955081     Year: 1995

GENERAL SPECIFICATIONS

Keyway Capacity: 1/16″ To 1-1/4″
Maximum Length Of Cut: 9″
Length Of Stroke: 3″, 4-1/2″, 6″, 7-1/2″, 9″
Strokes Per Minute: 34
Feeds: (3) .002″, .004″, .006″
Largest Diameter Cutter Bar: 1-1/4″
Distance From 1″ Cutter To Column: 16-1/4″
Max. Distance Under Standard Clamps: 14″
Distance Between Clamps: 25-1/2″
Table Size: 24″ x 27″
Table Height From Floor: 36″
Floor Space Required: 32″ x 36″

EQUIPPED WITH

2 HP Motor, 230/460/60/3
Automatic Feed
Automatic Stop
Automatic Centering
Centering Vee and Holding Clamp Bar
1-1/4″ Cutter Bar
Bijur One Shot Lubrication

Approximate Weight: 1150 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
