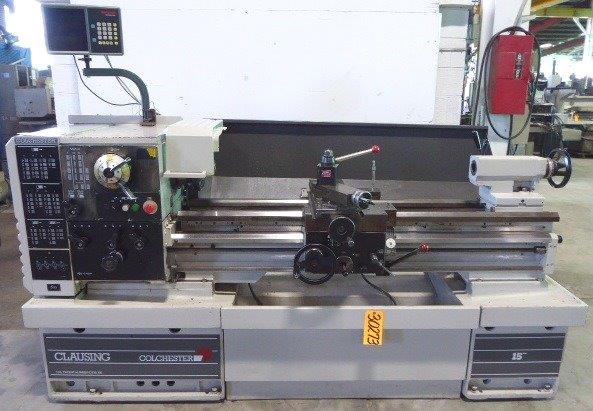

CLAUSING COLCHESTER GAP BED GEARED HEAD LATHE – 30273

//CLAUSING COLCHESTER GAP BED GEARED HEAD LATHE – 30273

CLAUSING COLCHESTER GAP BED GEARED HEAD LATHE – 30273

15″/23″ x 50″ CLAUSING COLCHESTER, Gap Bed, 25-2000 RPM, Inch/mm, DRO, 1998, Nice

Inventory ID: 30273
Manufacturer: Clausing Colchester
Specifications: CLAUSING COLCHESTER GAP BED GEARED HEAD LATHE

MODEL: 15″
SERIAL NUMBER: TG0009     Year: 1998

GENERAL SPECIFICATIONS

Swing Over Bed and Saddle Wings: 15.7″
Swing In Gap: 23″
Swing Over Cross Slide: 9.7″
Bar Capacity Thru Spindle: 2-1/8″
Distance Between Centers: 50″
Spindle Nose: D1-6 Camlock
Spindle Speeds: (16) 25 to 2000 RPM
Threads, U.S.: (56) 2 to 56
Threads, Metric: (51) .2 to 14 mm
Cross Slide Travel: 9.8″
Top Slide Travel: 5.1″
Tailstock Quill Diameter: 2.8″
Tailstock Quill Travel: 5.5″
Tailstock Center: No. 5 M.T.

EQUIPPED WITH

7-1/2 HP Main Motor, 230/460/60/3
Collet Chuck
Anilam Wizard 450L Two Axis Digital Readout
Inch/Metric Threading
Thread Dial
Dorian Quick Change Tool Post
Coolant System
Hard Ways
Removable Chip Pan
Full Length Rear Splash Guard

Approximate Dimensions: 100″L x 50″W x 50″H
Approximate Weight: 3300 Lbs.

F.O.B. Cincinnati, Ohio 45223

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
